PV Photovoltaic Voltage Tester Short Maximum Power Open Circuit Voltage Solar MPPT Meter for Solar Panel

2025-07-22

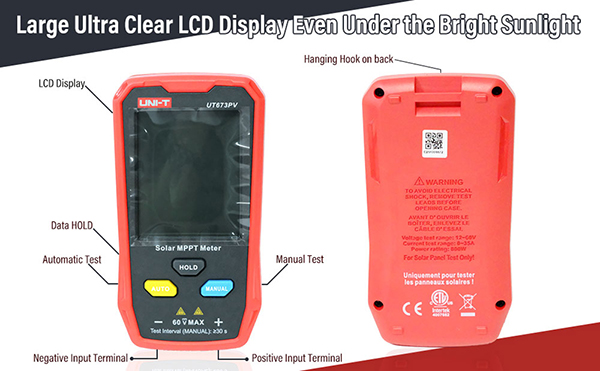

1753145030107602

* \uD83E\uDE81【No Battery Requed】Our solar PV tester does not need battery, just connect the cable to solar panel then it can work. There is no requement for batteries as the measurement can be effortlessly performed for extended periods. Supplied with cables and

  an connector wrench, the solar panel tester comes ready for use without requing additional connectors.
* \uD83E\uDE81【Latest Upgrade Tester】Now, it's a breeze to measure any solar panel under 800W & 60V! Thanks to the snazzy big LCD screen, you can read the values crystal clear, even under the bright sunlight. Designed with portability and convenience in mind, this meter is both lightweight and easily portable, making it an essential companion for anyone involved in the solar panels field.
* \uD83E\uDE81【Solar MPPT Meter】With rapid and accurate capabilities, the solar panel tester meter can assess the maximum power output (Pmax), open-ccuit voltage (Voc), and short-ccuit t (Isc) simultaneously, presenting all relevant data on its clear display. This versatile device is widely employed in the assessment of solar panels and trouble faulty modules. This solar panel tester also distinguishes quality among solar panel brands and aids in finding optimal placement angles.
* \uD83E\uDE81【Multi Protection for safety】Our solar panel multimeter has multi protections like over-voltage protection, over-temperature protection, over-t protection and over rated power protection. Warnings are displayed upon exceeding limits. Please be sure to
  disconnect the Photovoltaic d from other equipment or loads before testing. Our photovoltaic multimeter cannot measure multe solar panels connected in series, but it can measure multe solar panels connected in parallel.

Note:
1. Be sure to use the t power range of this product within the rated voltage range.
2. Be sure to disconnect the PV panel from other equipment or loads before testing.

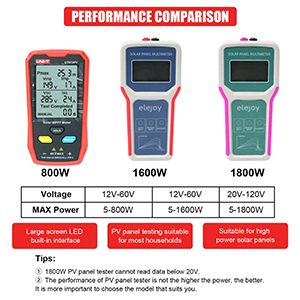

1753145109618636Specifications:
Model: FB673PV
Material: ABS
Power: 0.1-800W
Voltage: 12-60V
t: 0-35A
Power Supply: Solar panel power supply
Maximum Voltage Between Signal Input Terminal and COM Terminal: 100V
Range: Auto Manual
Polarity Display: Protection against reverse connection
Overrange Indication: "OL"
Drop Proof: 1m
Operating Temperature: 18℃~28℃ (64℉~82℉)
Storage Temperature: -10℃~50℃ (14℉~122℉)
Relative Humidity: ≤75% (0℃~30℃ below); ≤50% (30℃~40℃)
Operating Altitude: ≤2000m
Item Size: 142 * 76 * 22mm 5.59 * 2.99 * 0.86in
Item Weight: 154g 5.43oz
Package Weight: 530g 18.69oz
Package Size: 22 * 17.5 * 6.5cm 8.66 * 6.89 * 2.56


1753145185288290

Package List:

1 * Solar Panel Tester
1 * Connection
1 * Clamp Cable
1 * EVA Tool Bag
1 * User Manual (English)
