Coax Cable Keystone Jack Insert

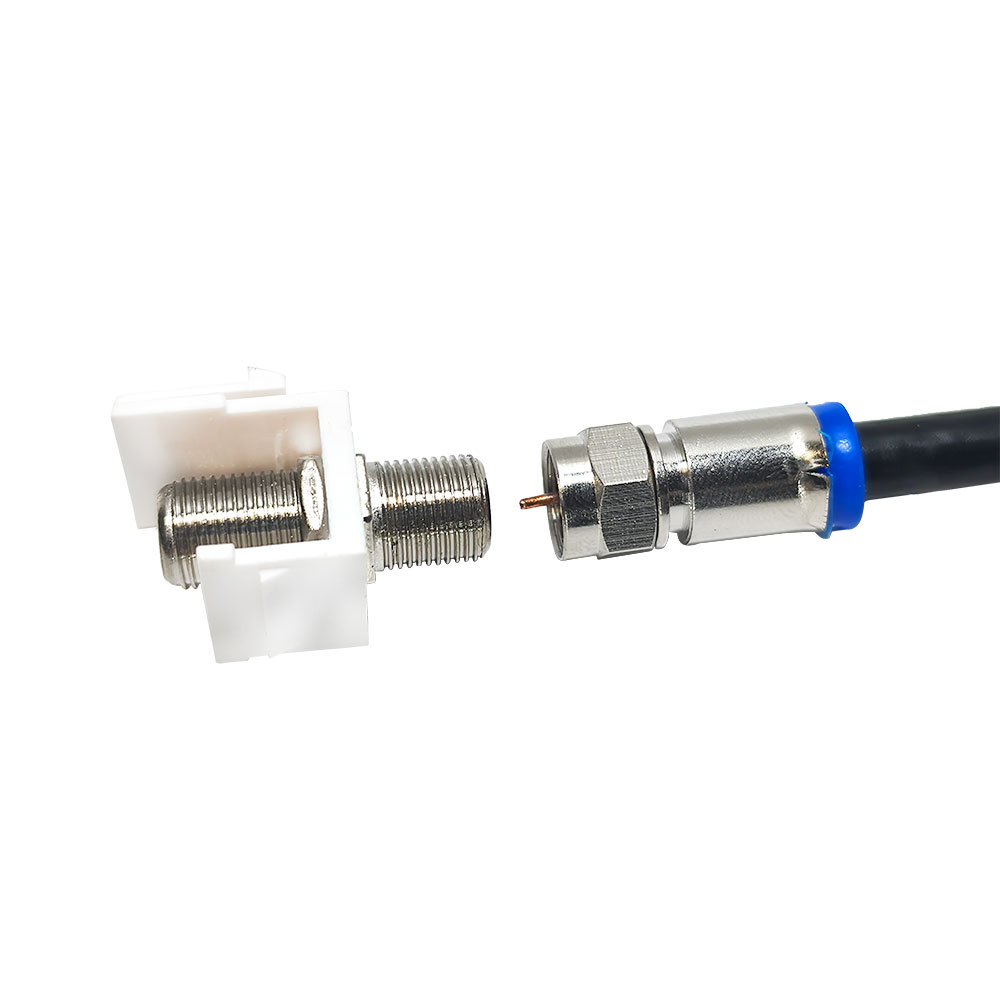

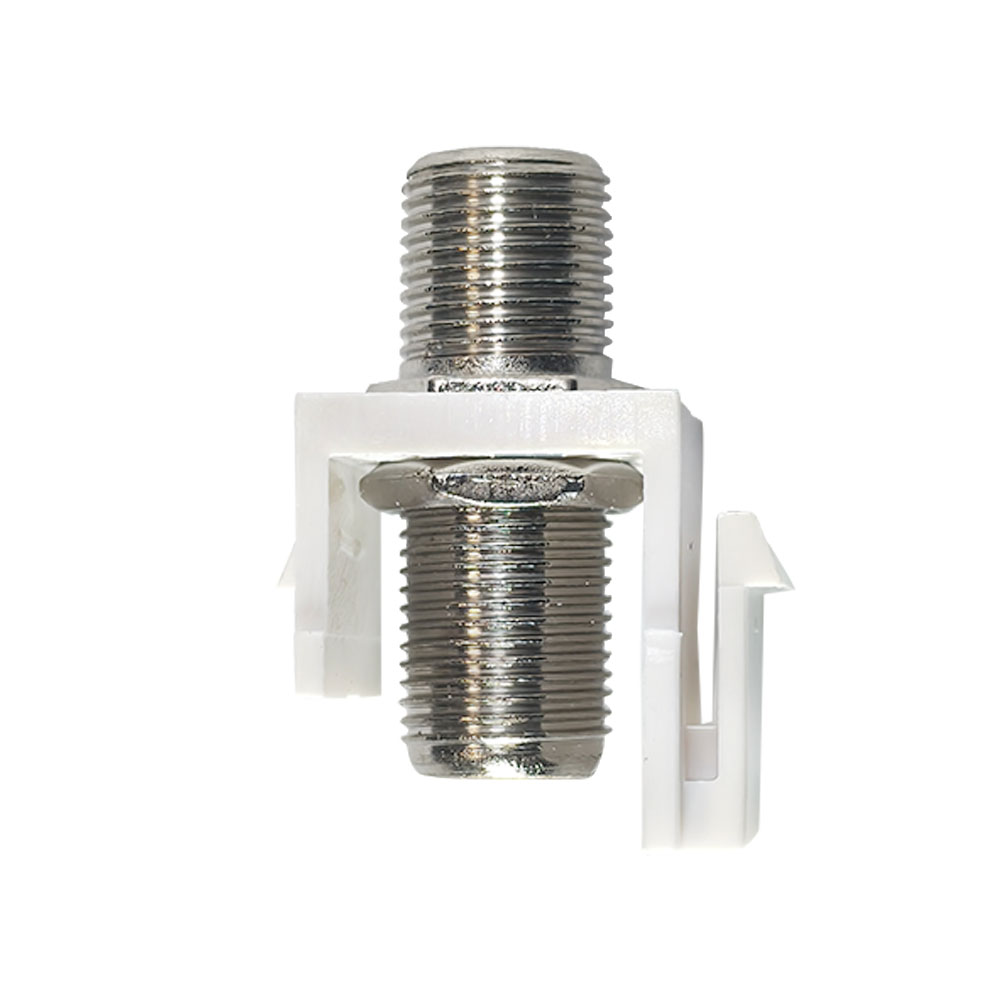

Coax Cable Keystone Jack Insert (coaxial cable keychain jack insert) is a standardized module for structured cabling systems. It is designed for coaxial cables (such as RG6 and RG59) and can be seamlessly integrated into Keystone panels, distribution frames or surface mounting boxes to achieve efficient transmission of audio and video signals such as television, satellite, broadband Internet and distributed antenna system (DAS).

Keystone Jack Convenience

The Cable Matters RG6 Coaxial Keystone Jack inserts provide a secure and quick way to connect an RG6 coaxial cable to your wall-mounted UHD TV. These commercial grade inserts provide a time-saving and tidy alternative to running long coax cables across the floor.

Cost-Effective 5-Pack

This convenient 5-Pack provides spare keystone jacks for a bedroom and basement location.

Reliable Signal Transmission

* Standard F-81 connector port
* Screw-on a coax cable to each side
* Frequency-rated up to 3 GHz
Important Note: May not fit slim decorator-style wall plate blanks for keystone jacks

Product description

Our BNC to RCA coax cable provides you with an affordable, reliable and high quality BNC to RCA connection.

While these state-of-the-art connectors are engineered using high grade copper coated steel to prevent pulling and ensure placement security

1、 Core Features

Modular design:

Adopting a snap on installation mechanism, it can be quickly fixed in standard Keystone panels or patch panels without the need for tools, making it easy to maintain and expand.

Supports hot swapping operations, allowing for the replacement or upgrade of inserts without interrupting system operation.

Compatibility:

Compatible with coaxial cable types such as RG6 and RG59, meeting the needs of different application scenarios.

Provide F-type or BNC connector options to accommodate multiple device interface standards.

Signal transmission performance:

High frequency signal transmission up to 3GHz is supported to ensure stable transmission of high-definition video and high-speed Internet signals.

By using high-quality metal materials (such as brass gold-plated) and precision manufacturing processes, extremely low signal loss and excellent shielding performance are achieved, effectively resisting electromagnetic interference (EMI).

Durability:

The metal shell design provides excellent mechanical strength and corrosion resistance, suitable for long-term outdoor or industrial environments.

The internal connectors are manufactured with high precision to ensure stable contact and reliable connection under long-term use.

2、 Technical parameters

Frequency range: support 0-3GHz high-frequency signal transmission to meet the needs of high-definition video and high-speed Internet.

Connector type: Provides F-type or BNC connector options to adapt to different device interfaces.

Signal loss: Extremely low insertion loss and return loss ensure signal transmission quality.

Shielding performance: Multi layer shielding design effectively resists electromagnetic interference.

Installation method: snap on installation, no tools required, fast and convenient.

Applicable environment: Suitable for various indoor and outdoor environments, including humid, high temperature, and corrosive environments.

3、 Application scenarios

Home entertainment system:

Connect devices such as televisions, set-top boxes, satellite receivers, and game consoles to achieve stable transmission of high-definition video and audio signals.

Support multi room video distribution system, providing audio and video services to multiple rooms through a single signal source.

Commercial audio and video systems:

Used for audio and video signal transmission and distribution in meeting rooms, classrooms, exhibition halls, and other places.

Support the connection and management of devices such as digital signage, surveillance cameras, and broadcasting systems.

Distributed Antenna System (DAS):

In large buildings or public places, wireless signals are transmitted through coaxial cables to achieve indoor wireless coverage.

Support multi operator signal access and distribution, improve signal coverage and stability.

Broadband Internet access:

Used for connecting broadband access devices such as cable modems and fiber to the home (FTTH).

Support the stable transmission of high-speed Internet signals to meet the Internet needs of home and enterprise users.

4、 Installation and maintenance

Installation steps:

Preparation tools: No special tools are required, only wire strippers and screwdrivers (for fixing the panel) need to be prepared.

Wire stripping: Use wire stripping pliers to strip the outer skin and shielding layer of coaxial cables, exposing the central conductor.

Connection: Insert the central conductor into the connector of the insert and ensure a secure connection.

Fixed: Insert the insert into the corresponding slot of the Keystone panel or patch panel, ensuring that the buckle is secure.

Testing: Use professional testing equipment to verify the quality of signal transmission and ensure correct installation.

Maintenance suggestion:

Regularly check the connection status of the insert to ensure that the connection is firm and not loose.

Avoid applying excessive external force or bending coaxial cables on the insert to prevent damage to the connector or cable.

When used in damp or corrosive environments, regularly clean the surface of the insert to prevent corrosion and oxidation.
