* 【Digital cable scanning】NF-8108 LAN Cable tester is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode.
* 【Fault distance location】Rj45 cable tester measure cable length and locate fault distance accurately for lan cable. the range is 200m.That means it's equipped with the most powerful cable location technologies for any work environment.
* 【Multi Function】Network Cable tester kit includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
* 【PoE information testing & Hub blink】 Identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.

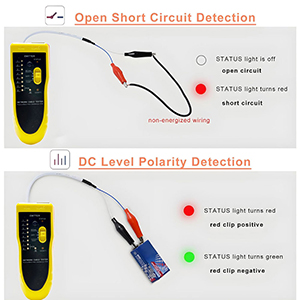

* 【Cable continuity testing & NCV】Test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).
Specification:
Color: Yellow
Battery:2*9V battery(not included)
Weight: 410g

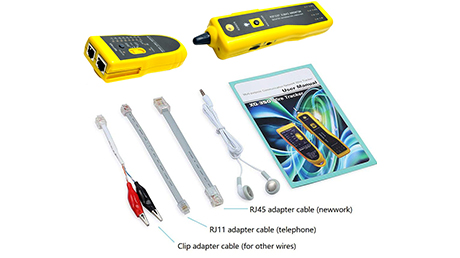

Scope of delivery:
1 x Cable Transmitter
1 x cable receiver
1 x RJ11 Cable
1 x RJ45 Cable
1 x Headphone
1 x cable with crocodile clip
1 x Black Bag
