RG6 RG59 RG11Wire Line Cutter Stripping Pliers Crimping Tool

Coaxial Cable Stripper

Multi-functional Wire Stripper with imported blades, sharp and durable,durable: ABS material shell, impact, anti-wear, heat resistance, etc.

Features:

*Strips outer jacket of UTP and STP cable and CAT 5 roundtelephone cable

*Strips RG-59/6/11/7 coaxial cable

*Strips fat telephone cable

*Cable cutter function

instructions:

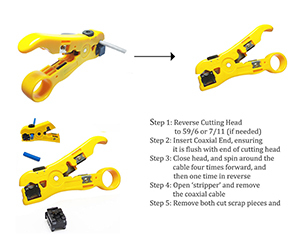

1.Push the cassette out of the housing, push from the front of the cassette.

2. Cassette is reversible, one side is available for RG-59/6 and another side is for RG-7/11.

3. For stripping coaxial cable:

 a. insert the cable until it aligns with the cable guide.

 b. Insert your index finger into the stripper's finger ring, rotate the stripper by counter clockwise 3-5 times.The cable insulation is cut while you are turning the stripper.

 c. Open the jaws and remove the cable. Pull away the outer jacket and dielectric to expose the inner conductor.

 d. Stripping distance is designed for 6mm, for each dielectric and inner conduct.

4. For stripping round networking cable:

 a. Insert the cable into the second stripping hole, rotate 1-3 times at counter clockwise, and then open the jawand remove the outer jacket.

 b. The black color adjusting knob is for adjusting the blade's depth. Turn clockwise for increasing the blale'sdepth and counter clockwise for reducing the depth.

5. For cutting coaxial cable, round networking cable or fiat telephone cable, place the cable in position and thensqueeze the handles.

6. For stripping fiat cable, insert the cable between the stripper blades. Squeeze handles, Cable must be keptperpendicular and then pull from the tool.

 a. lnsert 4P/6P cable into the two-bladed side of the tool's striper until it touches the Stop guide.

 b. insert 8P cable into the two-bladed side of the tool's stripper and let it extend a litle past the lower cutblade.
