* FTTH Fiber Optic drop Cable Stripper is used to peel 250um coating of 125um fiber optic
* 1.98mm open pore at the top uses to peel protective covering of fiber optic pigtail.
* After manufacturers preset all of sizes, you do not need to adjust
* All of cutting ends has precise mechanical tolerance to make operation clean and smooth. Hand shank is designed by human engineering theory, so you will feel comfortable when grasping. Please make pliers in the closed position if you don’t use it.
Features
Universal Stripper for 3.1x2.0mm FTTH drop cables with steel wire or FRP strength member.
Made of zinc alloy steel with PVC non-slip handle. Improve cable splicing, more efficient and easy to use.

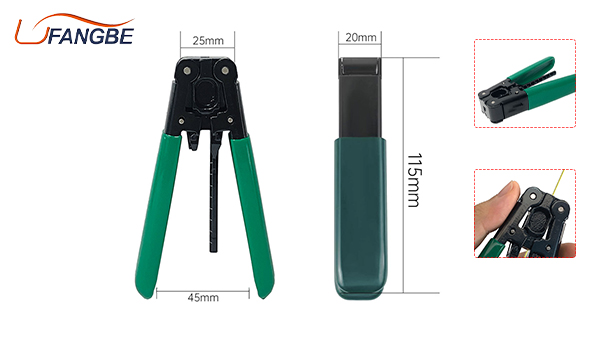

Dimensions: 30 x 110 x 20 mm
For stripping 250 micron buffer coating to expose 125 micron clad fiber
Second hole for stripping 2-3mm fiber jackets
140μm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber Pre-set at the factory - no adjustments needed
Will not scratch or nick glass fiber All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips Comfort-grip, ergonomic handles Lock to hold tool closed when it is not in use
Applications
FTTH Fiber Optic Drop Cable, fiber cladding diameter 125μm.
