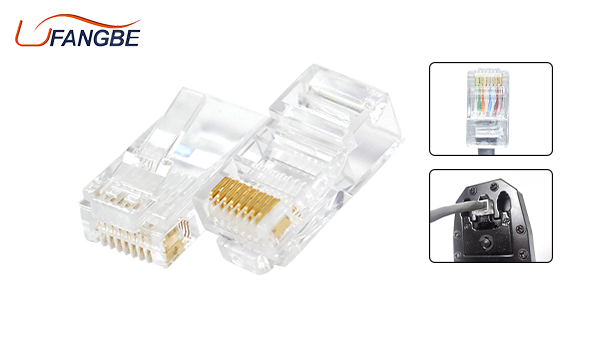

CAT5 UTP Ethernet Rj 45 Cable Connector

1746665318902533

1) All Modular Plugs RJ11 RJ12 RJ45 Connectors are available:
8P8C, 8P4C, 6P4C, 6P2C, 4P4C, 4P2C; RJ11/RJ12/RJ45/RJ48 connector, UTP/FTP/STP/SFTP/SSTP, color modular plugs, or UK plugs are all
available.
2) Gold plating thickness: gold flash, FU,01,03, 06, 15, 30, 50U”.
3) UL/RoHS compliant.
4) Imported materials:
Imported polycarbonate material with good transparency and flexibility.
5) Designed according to FCC standard, and fully compatible with different jacks.
6) Standard packing: 1000pcs or 100pcs/bag with a sticker to mark specification.
For round cable, featuring gold plated contacts for the best possible connection. Manufactured from a leader in the Network Cables
industry, Make your network function to it's maximum potential

1746665346995752

Pass Through Design

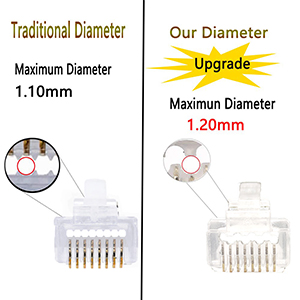

Maximum Wire Outside Diameter: 1.0mm

These CAT5/CAT5E connectors work effectively with 100Ω balanced twisted pair 250 MHz cable, conductor gauge between 23AWG-24AWG,
also works with nearly every style or model of RJ45 crimp tools.

High Performance Connectors
Gold plated pass through connectors with 3 prong blade ensures closer combination between the contacts and the wire core than 2
prong blade, and it can prodvide higher data transfer speeds.
