RJ45 Pass-Through Module: Simplifying Network Connectivity

RJ45 Pass-Through Module: Simplifying Network Connectivity

An RJ45 pass-through module is a critical component in structured cabling systems, designed to streamline Ethernet Cable termination while ensuring high-speed data transmission. Ideal for network installers and IT teams, it simplifies creating reliable connections for modern networks.

Key Functions:

• Effortless Termination: Allows cables to "pass through" the connector, enabling precise wire alignment before crimping.

• Signal Integrity: Maintains consistent performance for Gigabit/10Gbps networks by reducing crosstalk and interference.

• PoE Support: Safely handles Power over Ethernet (PoE/PoE+) for devices like IP cameras and wireless APs.

• Reusability: Enables adjustments during installation without damaging wires.

Standout Features:

• Universal Compatibility: Works with Cat5e, Cat6, Cat6a, and Cat7 cables.

• Tool-Friendly Design: Compatible with standard Rj45 Crimping Tools for quick, error-free terminations.

• Visibility: Transparent housing or color-coding aids in verifying correct wire order (T568A/B).

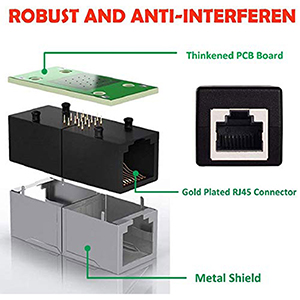

• Durability: Gold-plated contacts resist corrosion, ensuring long-term reliability.

• Versatility: Available in shielded (STP) and unshielded (UTP) variants for different environments.

Primary Applications:

• Office Networks: Deploy in Patch Panels, wall outlets, or network cabinets.

• Data Centers: Build high-density server racks with consistent connections.

• Smart Homes: Connect IoT devices, gaming consoles, and media systems.

• Industrial Settings: Withstand vibrations and temperature fluctuations in harsh conditions.

•


Why Choose Pass-Through Modules?
Traditional RJ45 Connectors require meticulous trimming, increasing error risks. Pass-through modules eliminate guesswork, saving time and reducing rework. Their precision ensures optimal performance for 4K streaming, cloud computing, and latency-sensitive tasks. Priced affordably ($0.5\text{–}$3 per unit), they’re a cost-effective upgrade for any wired infrastructure.

Whether upgrading legacy systems or building future-proof networks, RJ45 pass-through modules deliver speed, simplicity, and stability—essential for today’s connected world.
