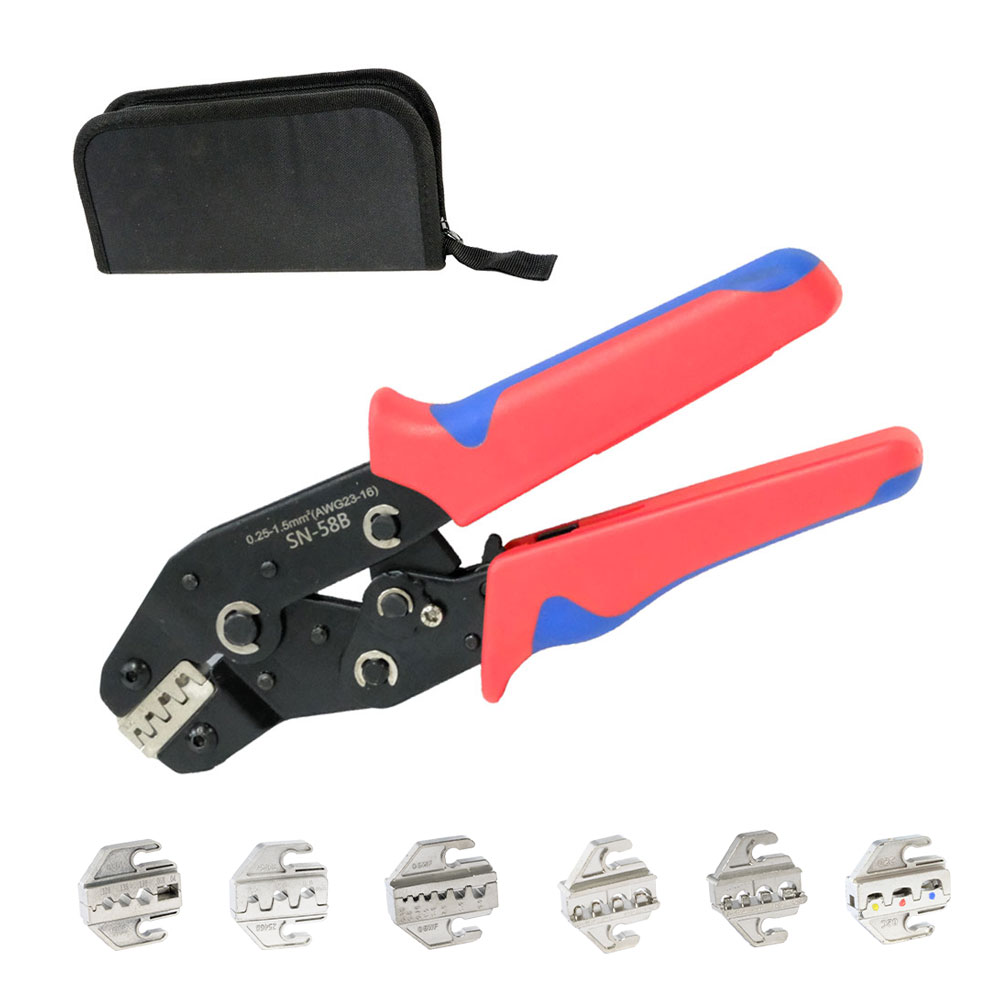

About this item

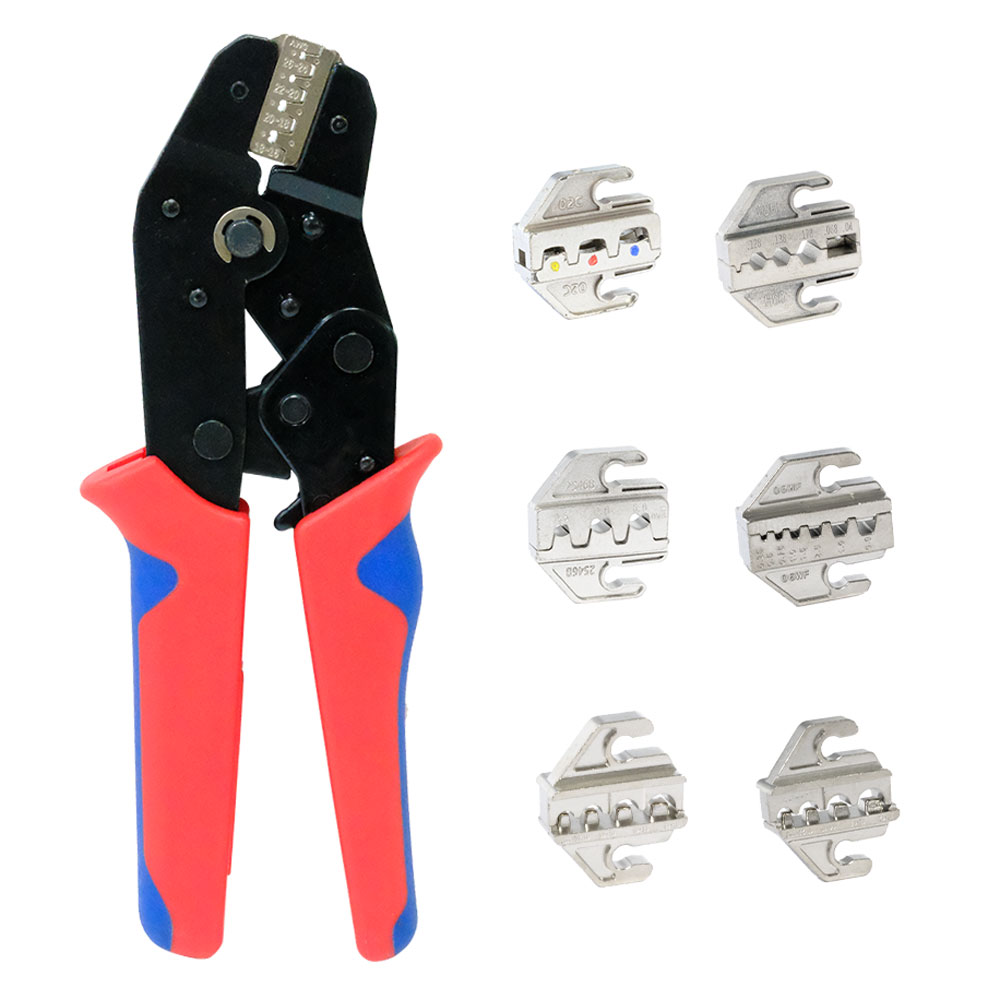

* Versatility: 9 jaws suit for open barrel terminals (for Dupont, JST, TE, MOLEX etc.), D-sub conenctors,KF 2510 connectors, ATX,EPS,PCIE,SATA Pins (2.54/3.96/4.8/5.08/6.3mm²), insulated and non-Insulated ferrules, butt connectors,solar connectors, coaxial cable connectors.
* Excellent Performance:The secondary polished jaws and ratchet mechanism ensure a super quality crimp after repeated crimping. One of the jaws, A58, is made of powder alloy for greater hardness and longer life, providing more precise crimping results.
* Ease Of Use:The 7-inch pliers, weighing 0.7 pounds, are designed with an automatic release mechanism and are very labor-saving to use.

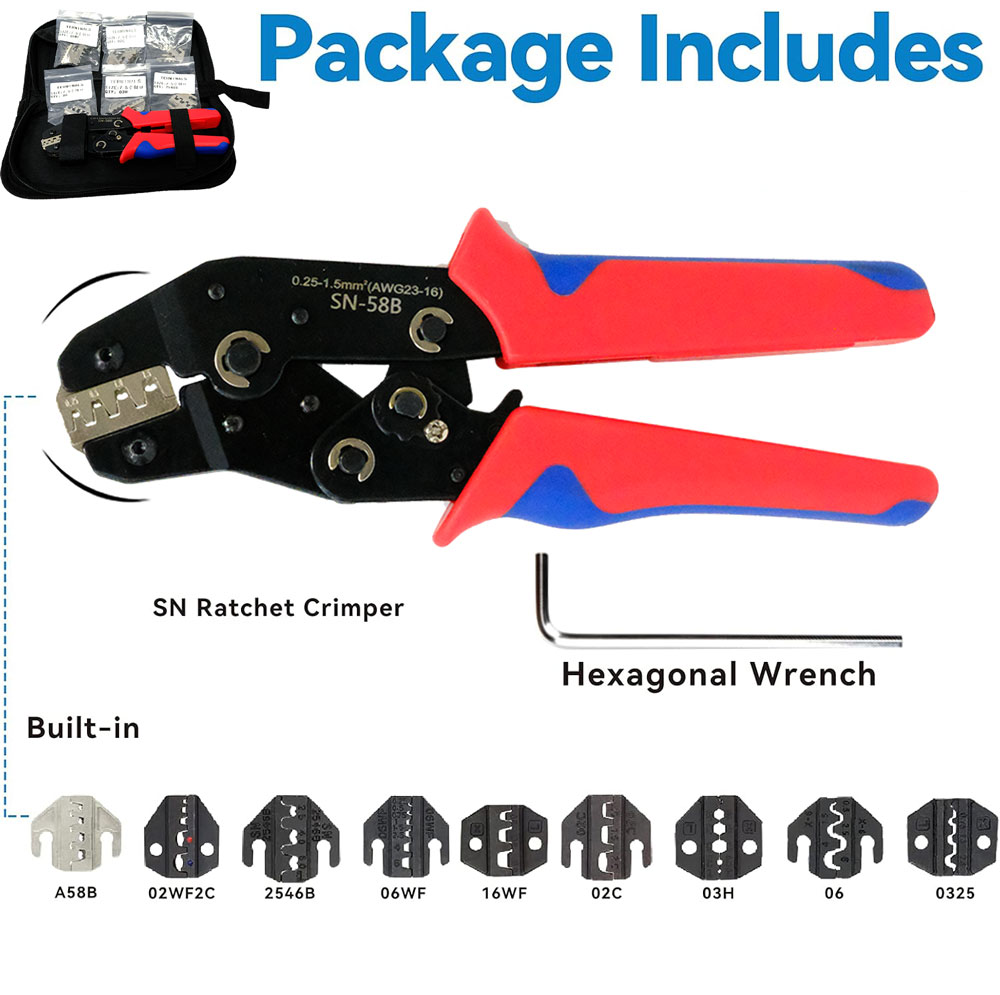

* Convenience:Comes with a tie-in toolkit for easy replacement of dies. All tools and accessories are packed in a durable tool bag, which is easy to carry and transport.
* Ergonomic:Due to the optimal handle grip position and TPR material comfortable non-slip grip, yes the work process is very labor-saving.

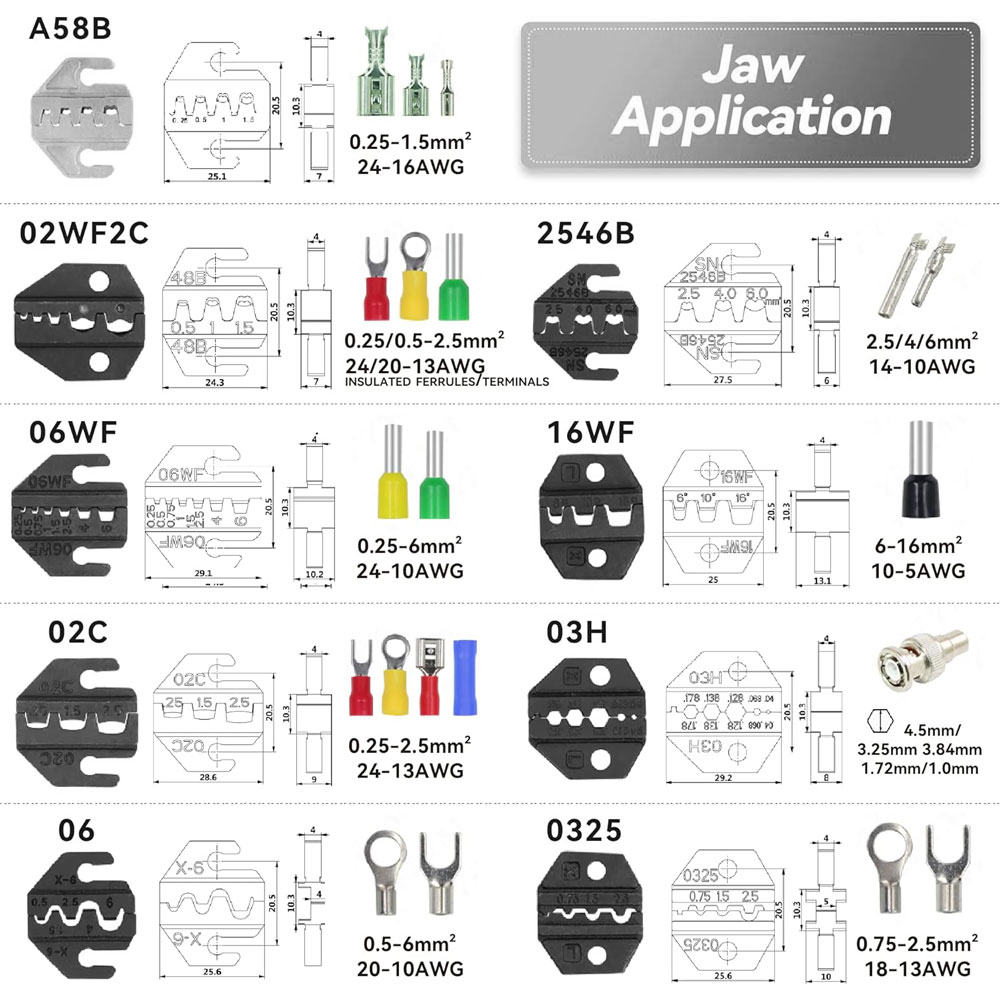

Product Parameters
| Model | Wire Range (mm²) | AWG Range | Type | Application Description |
|---|---|---|---|---|
| A58B | 0.25 – 1.5 | 24 – 16 AWG | Non-Insulated Open Barrel Terminals | Suitable for Dupont, JST, TE, MOLEX, D-sub, KF2510, ATX, EPS, PCIE, SATA power pins; 2.54/3.96/4.8/5.08/6.3mm grounding terminals and connectors |
| 02WF2C | 0.25 – 2.5 | 24 – 13 AWG | Insulated Ferrules and Terminals | Includes 0.5 – 2.5mm² (20 – 13 AWG) insulated terminals for general wiring applications |
| 2546B | 2.5 – 6.0 | 14 – 10 AWG | Solar Connectors | Designed for high-current solar panel connections |
| 06WF | 0.25 – 6.0 | 24 – 10 AWG | Insulated & Non-Insulated Ferrules / End Sleeves | Versatile use in cable processing and terminal end finishing |
| 16WF | 0.6 – 16 | 10 – 5 AWG | Insulated & Non-Insulated Ferrules / End Sleeves | Suitable for larger cable end termination in power systems |
| 02C | 0.25 – 2.5 | 24 – 13 AWG | Heat Shrink Insulated Terminals & Butt Connectors | Waterproof protection, ideal for automotive, marine, and outdoor electrical systems |
| 06 | 0.5 – 6.0 | 20 – 10 AWG | Non-Insulated Terminals | Widely used in industrial control cabinets and equipment wiring |
| 03H | Various sizes | RG cable types | Coaxial Cable Terminals & Connectors | Compatible with RG122, 174, 178, 179, 180, 187, 188, 195, 316, FIBER OPTIC, BELDEN 8212 |
| 0325 | 0.75 – 2.5 | 18 – 13 AWG | Non-Insulated Terminals | Ideal for industrial and electronic wiring projects |
Simple Steps to Crimp
1. Strip the appropriate length of wire and insert it into the terminal of the tube.
2. Hold the handle and release, the jaws will open automatically.
3. Place the sleeved ferrule into the jaws and hold the handle to crimp.
4. Once crimping is completed, a tight 4-sided terminal can be obtained.
A super-useful crimp crimping tool for anyone who works with electricity. Our ferrule crimping pliers with wire stripper avoids a lot of soldering and wire breakage, say goodbye to soldering on the end of the wire as well as pinching, which are annoying steps.
We can see this electrical terminal crimping pliers in a variety of situations, such as furniture, offices, etc. It is also frequently used in welding or electrical industry.
