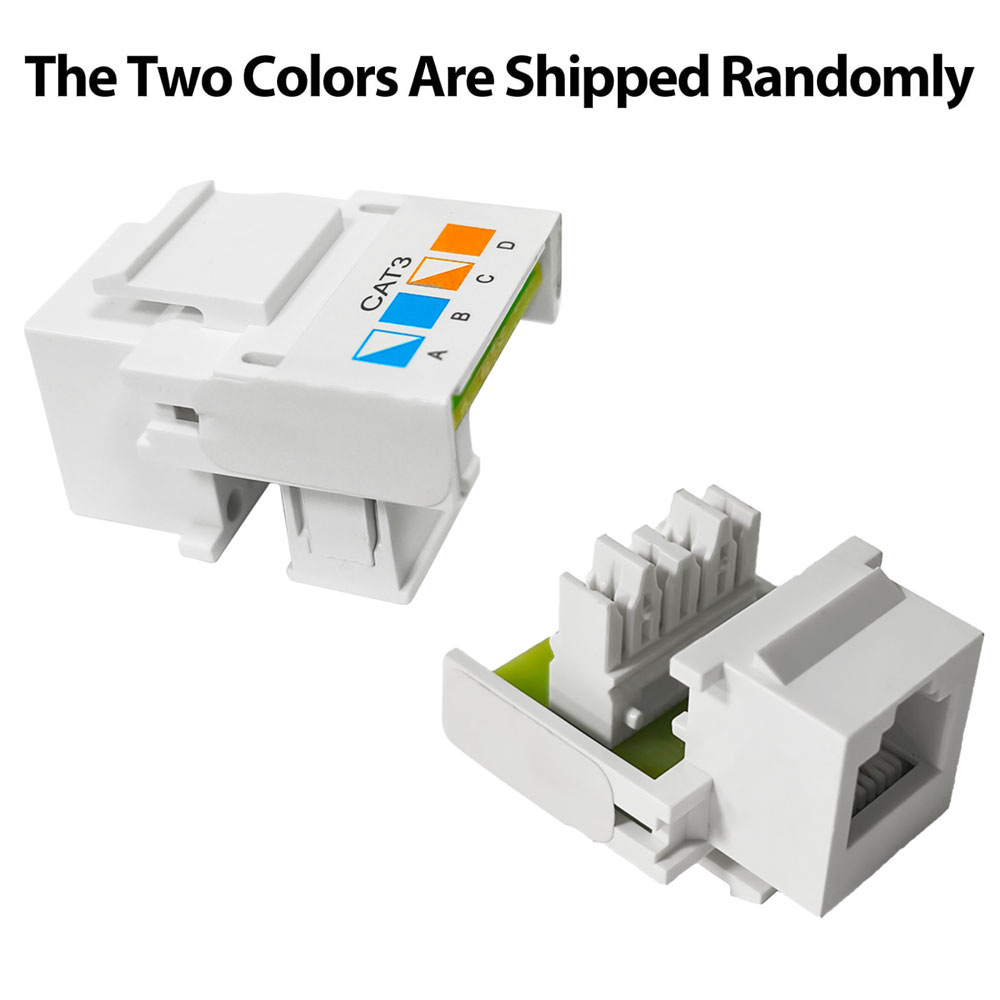

90 Degree UTP Modular Jack

Product Description

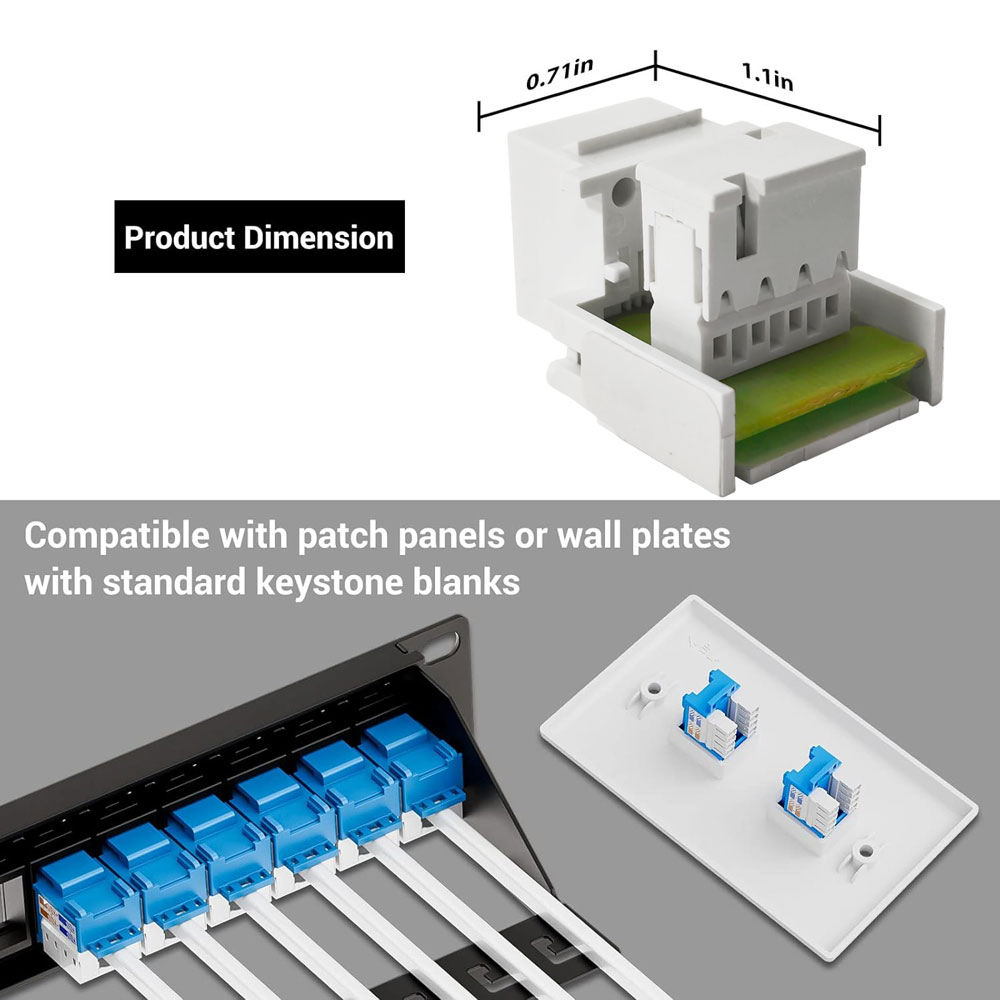

* [Usage]: Cat5e RJ45 Keystone Jack for Patch Panels, surface mount boxes, or wall plates (faceplates).

* [Future-proof]: Meets ANSI/TIA/EIA568.2-D International Standards and supports 10-Gigabit Ethernet connections between devices in a future-proof network.

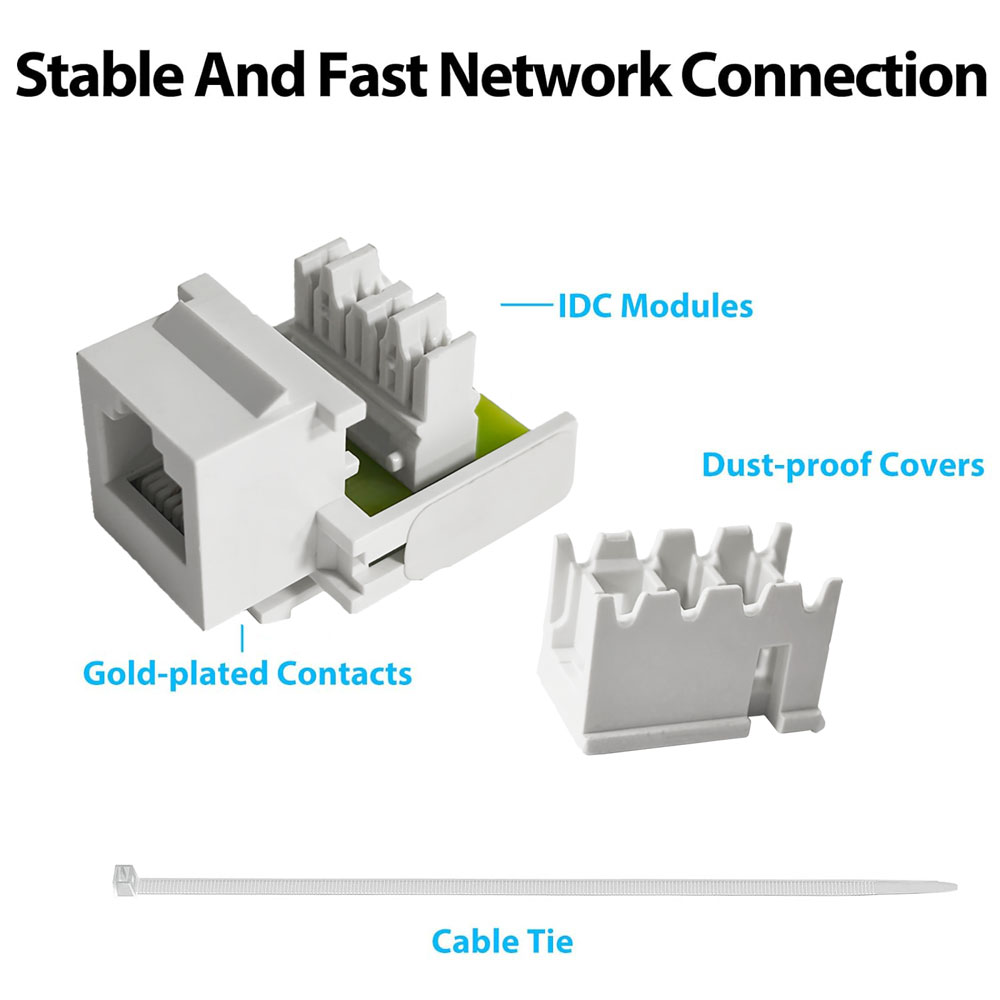

* [High Performance]: Gold plated contacts to improve transmission performance and easy snap-in retaining clip to ensure a secure connection.

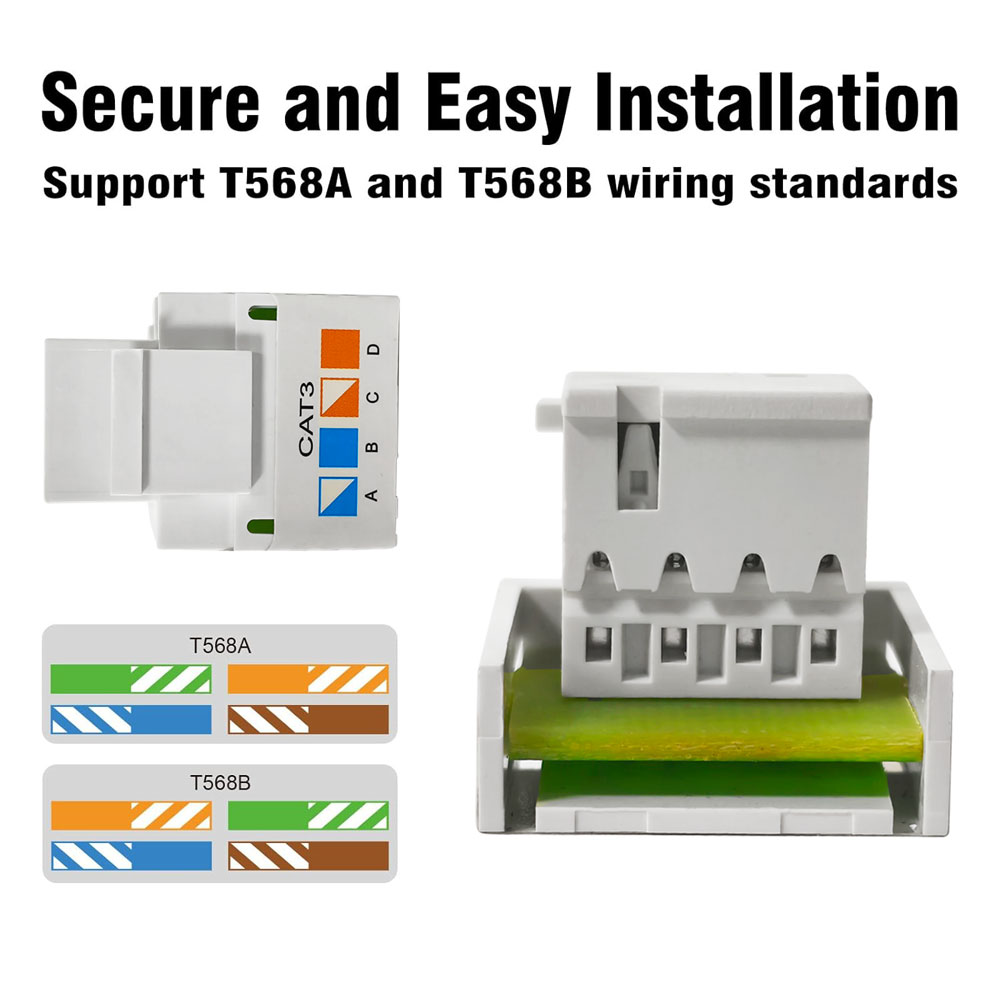

* [High Compatibility]: Supports 22-26AWG wire termination and is compatible with both T568A and T568B wiring patterns. 8 Times faster with our specific rapid termination tools.

* [Durability]: Transparent dust caps that assist with cable strain relief, and over 750 time terminations.

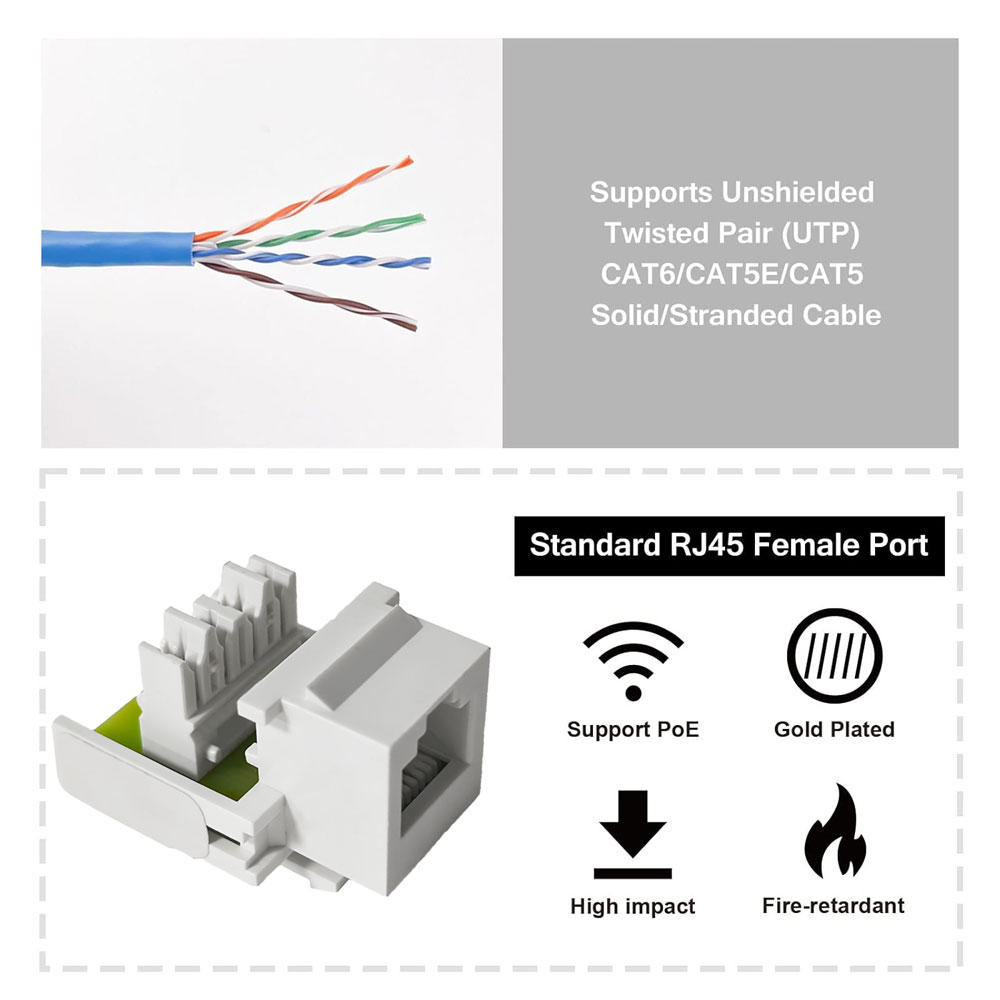

A 90-degree UTP (Unshielded Twisted Pair) modular jack is a right-angled network connector designed for Cat5e/Cat6/Cat6a Ethernet cabling, commonly used in wall outlets, patch panels, and high-density wiring installations. Its key features, applications, and purchasing considerations are outlined below:

1. Key Technical Specifications

1.1 Angle & Space Optimization

• 90-Degree Design: Minimizes cable bending radius, reducing signal attenuation and physical stress in tight spaces (e.g., behind wall plates).

• Space Efficiency: Saves vertical installation space compared to 180-degree jacks, ideal for dense deployments.

1.2 Transmission Performance

• Speed Support:

• Cat5e: Up to 1 Gbps (1000BASE-T).

• Cat6/Cat6a: Up to 10 Gbps (10GBASE-T) with reduced crosstalk.

• Signal Integrity:

• Insertion Loss: ≤0.2 dB (Cat6/Cat6a models).

• Near-End Crosstalk (NEXT): Optimized via twisted-pair isolation (e.g., Cat6a NEXT margin ≥5 dB).

1.3 Physical & Material Properties

• Contact Material: Gold-plated phosphor bronze (≥50 μin thickness) for corrosion resistance and 750+ mating cycles.

• IDC Terminals: Phosphor bronze, compatible with 22–24 AWG cables, rated for 200+ crimping cycles.

• Operating Temperature: -10°C to 60°C (standard models).

1.4 Compliance & Certifications

• Standards: TIA/EIA-568-C.2, EN50173, IEC 61156.

• Certifications: RoHS, CE, ISO9001.

2. Typical Applications

1. Wall/Floor Outlets:

• Right-angle design enables flush mounting in confined spaces (e.g., offices, hotels).

2. Patch Panels & Racks:

• Reduces cable clutter and improves airflow in high-density server rooms.

3. PoE Deployments:

• Supports 802.3af/at/bt (up to 60W) for IP cameras, Wi-Fi APs, and IoT devices (ensure jack rated for ≥1.5A per port).

4. Industrial Environments:

• IP20-rated models protect against dust and accidental contact.

Features:

• 110 style, 180 degree, tool-free.

• 8-way 8-conductor (8P8C)

• Compatible with 568A and 568B cabling.

• Meets or exceeds TIA/EIA 568B industry standard.

• RoHS compliant.

• UL listed.
