IP CCTV Camera Tester

The All in System IPC-5100 Plus is a powerful IP CCTV camera tester, mainly used for the installation and maintenance of monitoring systems. Below is a detailed introduction to its functional features:

Display Performance: Equipped with a 5.4-inch IPS touchscreen with a resolution of 1920x1152, it can clearly display images and operation interfaces.

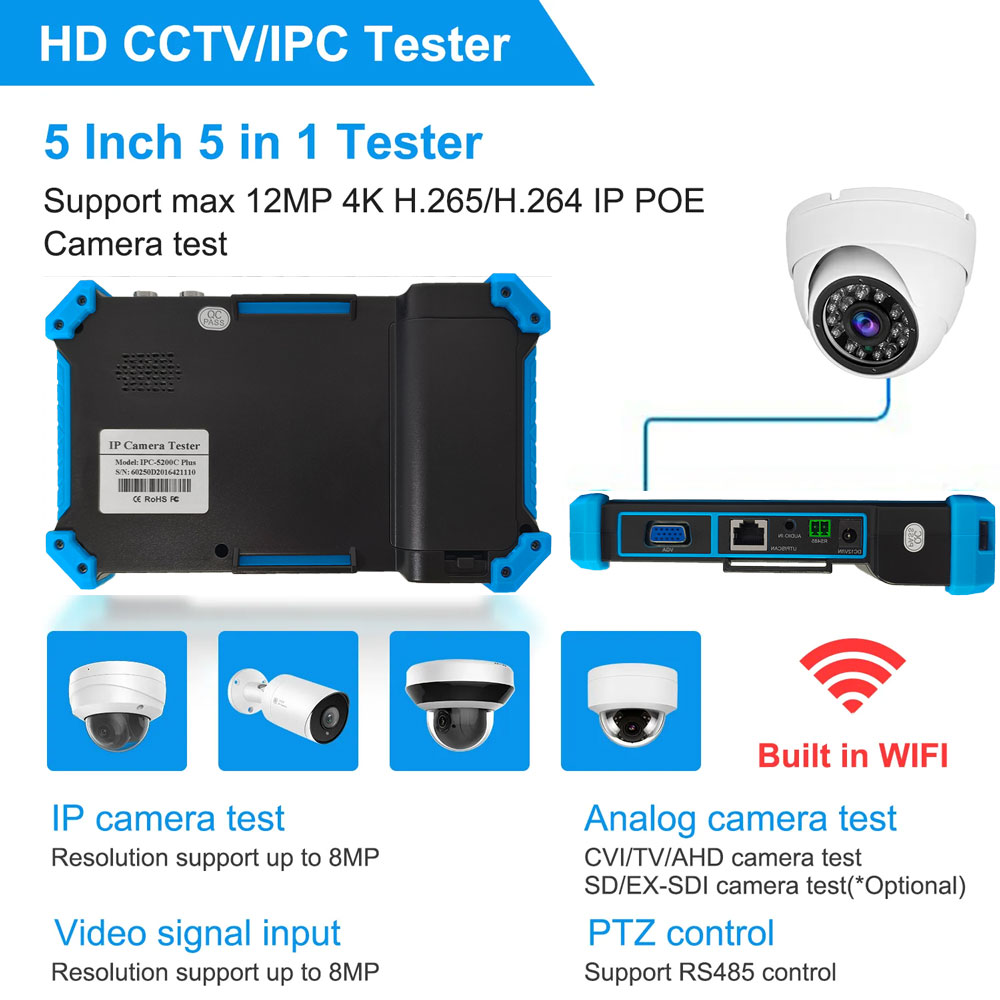

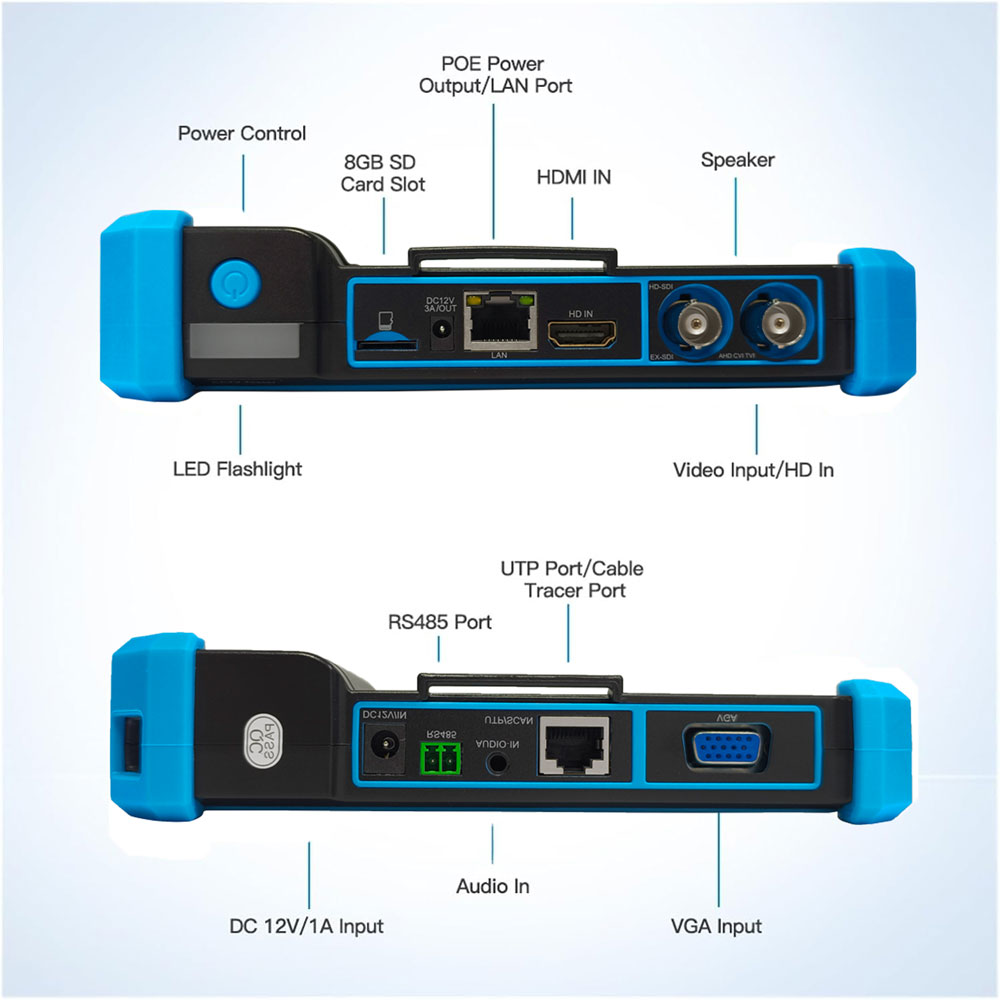

Video Input Support: Supports multiple high-definition video input formats, including HDMI input (supporting 4K 30FPS) and VGA input (supporting 2048x1152 60FPS). It also enables 8MP CVI/TVI/AHD camera testing and 8MP EX-SDI, HD-SDI, 3G-SDI camera testing.

Video Decoding and Display: Supports H.265/H.264 encoding and can display 4K videos through mainstream methods. It can play high-definition videos smoothly, facilitating users to view monitoring screens.

Power Output: Provides DC12V 3A and 48V PoE power outputs, which can supply power to devices such as cameras and support power supply for devices during testing.

Auto-recognition Function: Features an Auto HD function that can automatically recognize the type and resolution of high-definition coaxial cameras without manual settings by users, improving testing convenience.

cable Testing Function: Has an RJ45 TDR cable testing function, which can test parameters such as cable pair status, length, attenuation, reflectivity, impedance, and skew. It also supports UTP cable testing to detect near-end, mid-end, and far-end fault points of RJ45 cables, helping users quickly locate cable issues.

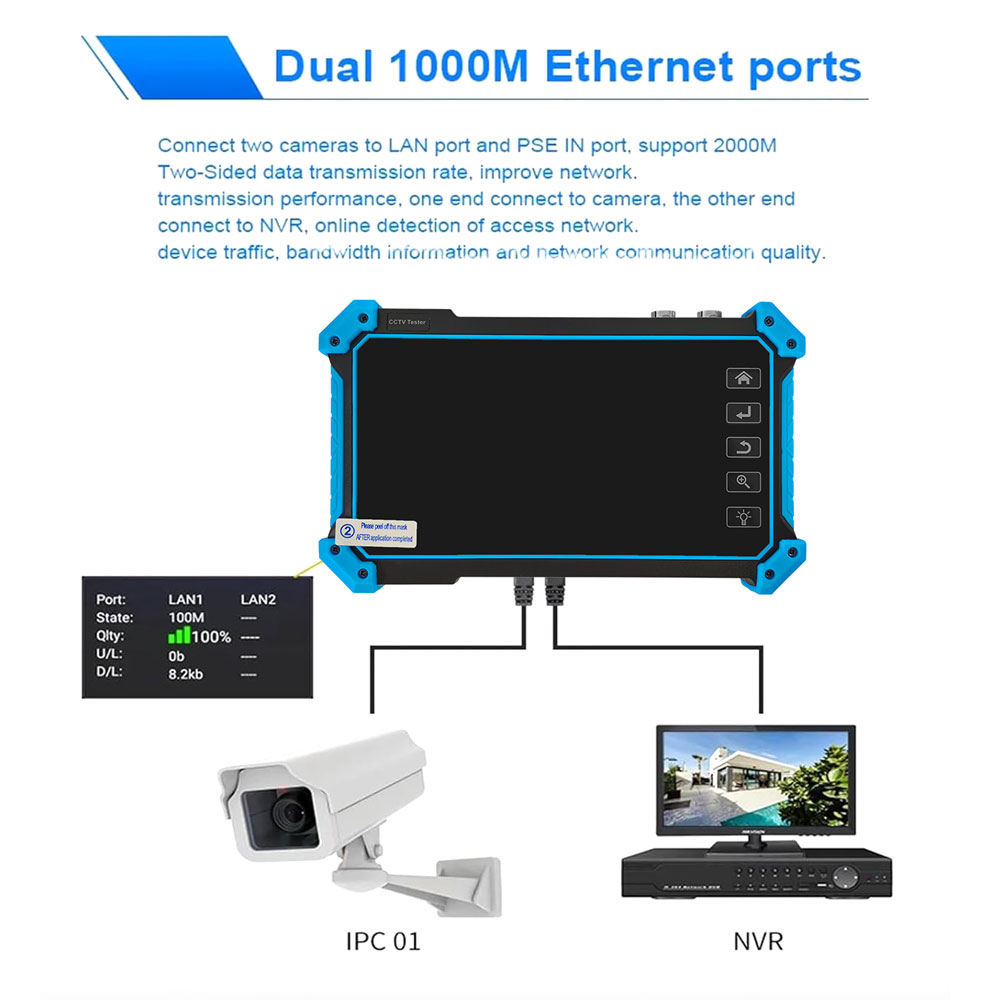

Network Tools: Built-in with a variety of network tools, such as IP scanning, Port Flash, DHCP server, and Trace Route. It also supports traffic monitoring to display real-time upload and download speeds of network ports or connections and other network parameters, facilitating users in network debugging and troubleshooting.

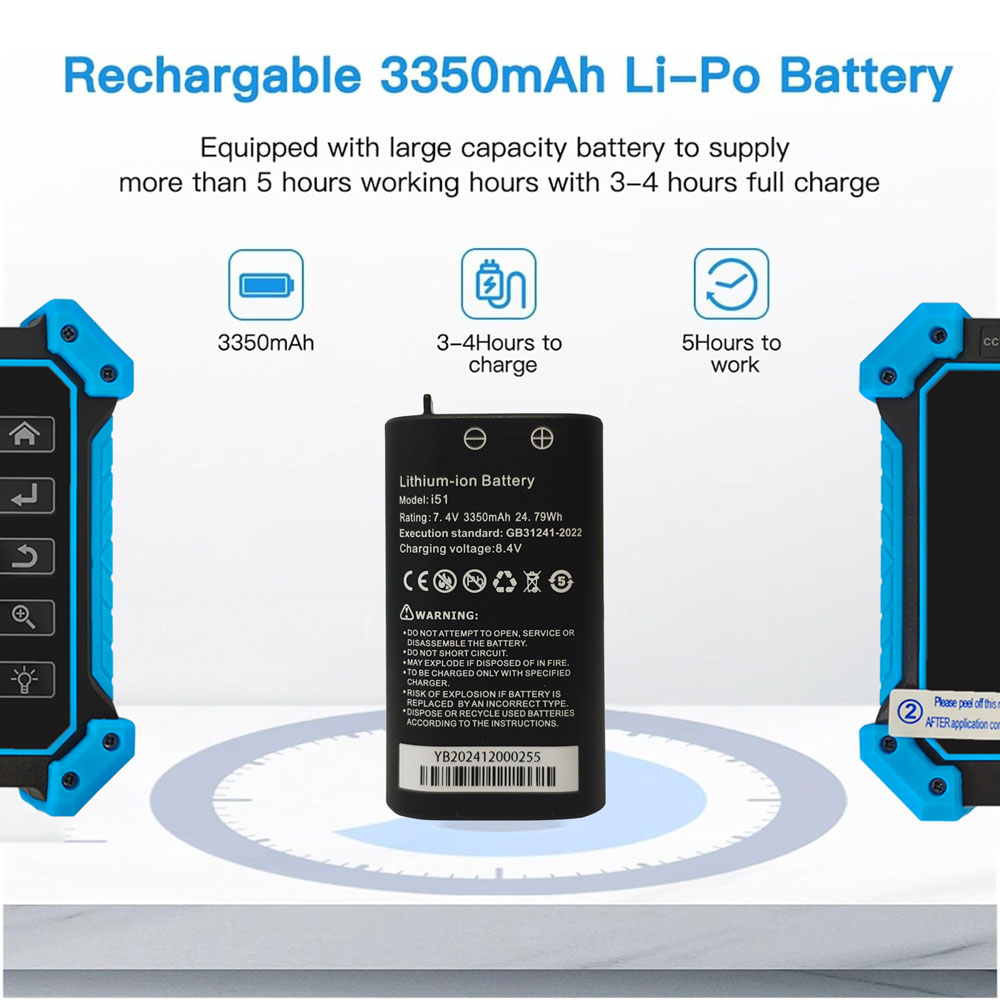

Other Functions: Supports users to update software and install applications independently. It also has practical tools such as an LED light, calculator, and music player. In addition, the device has a built-in 7.4V/3350mAh lithium battery, which can provide a certain battery life.

Core Functional Highlights

Dual-specification Compatibility: Quickly tests both RJ45 network cables and RJ11 telephone cables without the need for additional equipment replacement, meeting various wiring testing requirements.

Comprehensive Fault Diagnosis: Automatically scans and identifies line issues, including open terminals, short circuits, and whether the line uses a straight-through or crossover wiring method, making fault types clear at a glance.

Intelligent and Efficient Testing: Equipped with an exclusive LED indicator for UTP cables to provide real-time feedback on testing status. It automatically checks for wrong wiring or disordered wire sequences without manual operation, improving testing efficiency.

Application Scenarios & Advantages

A Must-have for DIY Enthusiasts: Particularly suitable for IT enthusiasts or network professionals. It enables instant verification of wiring correctness when making network cables by themselves, avoiding device disconnection caused by line problems.

Portable Independent Power Supply: Operates with just one 9V PP3 battery (battery not included in the package), no external power supply required. It is convenient for mobile use in various scenarios such as computer rooms, offices, and homes.

Flexible Adaptation to Battery Life: The test length of the cable can be automatically adjusted according to the battery level. When the battery is fully charged, it can support testing of longer-distance cables, meeting testing needs in different scenarios.

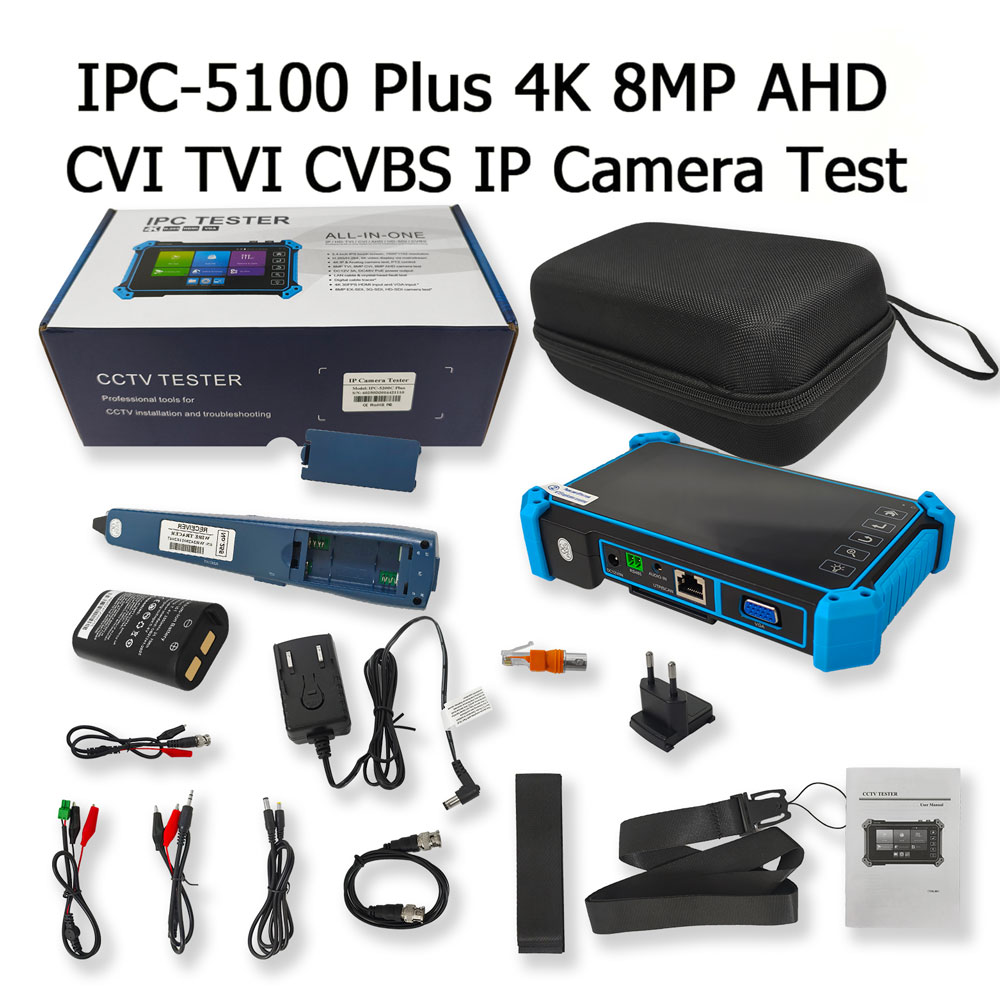

Packing

Q: What is an IP CCTV camera tester used for?

A: It is a diagnostic tool used to quickly install, configure, and troubleshoot IP cameras. It verifies power (PoE), network connectivity, video stream, and image quality on-site without a laptop.

Q: What key features should I look for?

A: Essential features include a PoE injector, a display screen, support for multiple protocols (e.g., ONVIF), the ability to generate IP addresses, and sometimes a built-in battery for portability.

Q: Can it test Power over Ethernet (PoE)?

A: Yes, most testers can check if the connected network cable provides the correct PoE voltage and power level required by the camera, ensuring proper installation.

Q: How does it help with network configuration?

A: It can detect the camera's IP address, change it if necessary, and check network connectivity (ping), helping to resolve common IP conflicts and connection issues.
